Electrical and Mechanical Infrared Surveys providing Documented
Reporting with Repair Verification

We perform IR Electrical Survey work for Electrical Contracting Companies, Building Management Firms, Manufacturing Facilities, Building Contractors, Petrochemical Facilities and for our other commercial client’s at their sites or their customer’s locations. Typically, we perform one to five days of on-site services inspecting of up to 140 to 150 electrical items per day. We then put each inspection item in a comprehensive report providing temperature differences embedded on an IR image, a comparative digital picture and if fault criteria is met we rate it to NETA Standards. We use a separate summary page listing faults in their order of importance. Our report pages allow for repairs performed to be included in the report at a later date, after the corrective action is finished. Allowing a complete documentation of your infrared electrical survey.
See our ‘Sample Report’ (below) for a quick example of what you will receive to document your Electrical Survey. We use FLIR TOOLS+ ® and our custom built reporting template for your infrared electrical survey. You receive a professionally prepared and documented report for your company’s preventative and predictive maintenance programs, or for insurance compliance.

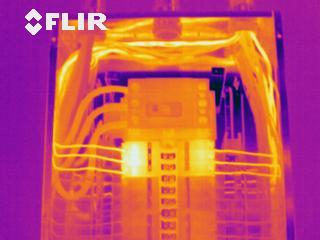

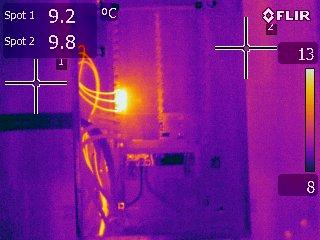

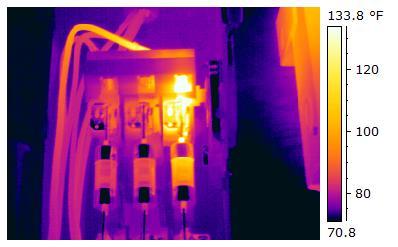

Figure 1. Fuses	Figure 2. Breaker Connections

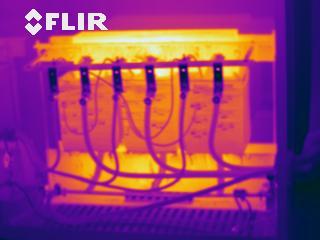

Figure 3. Circuit Breakers	Figure 4. Transformer

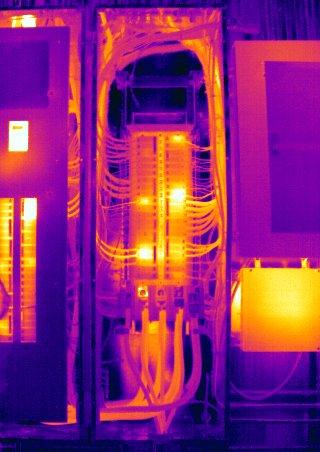

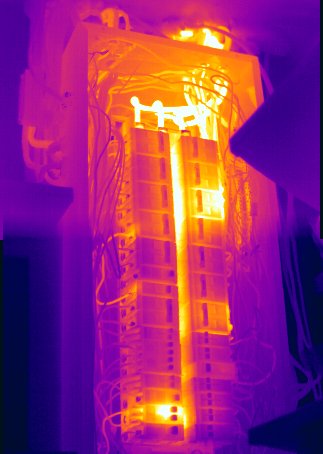

Figure 5. Expanded Panel View	Figure 6. Another 'stitched image' Panel

Figures 5 and 6 show our IR image building capabilities where we combine one or more IR images.

The IR Electrical Images seen above represent the image seen and taken from our FLIR ® T-660 infrared camera…”the Industries finest Infrared Camera!” We provide you with the report documentation, the IR images and temperature measurements while you make repairs and corrective actions to your standards and timetable with your electrical personnel.
You win using infrared for electrical surveys. And, these are the benefits of having our Infrared Electrical Survey, locating anomalies and ‘hot spots’ in electrical systems you normally wouldn’t see, infrared allows for accurate temperature variation measurements while reducing downtime finding electrical problems quickly. An Infrared Electrical Survey reduces unscheduled outages and their losses while allowing you to locate and repair electrical problems before they happen. Your Survey can help reduce your company’s electrical energy costs through planning and gaining insight to increasing your energy efficiency. Also, your company benefits in having a solid electrical maintenance program. Further benefits allow you to compare your infrared electrical surveys for later repairs and considerations. Your electrical faults are described for you to take corrective actions and allow you to comply with your Insurance Company’s requirements. Infrared is the advanced technology application you need to stay competitive! Saving money with improving the efficiency of your business is what you gain with the implementation of an Infrared Electrical Survey, and that is always… “a win!”

“See what you can’t see – with an Infrared Electrical Survey!”

Infrared Mechanical Surveys
Mechanical Surveys alert you to the inevitable failure of mechanical systems caused by excessive heat or fatigue. Infrared allows you to document a visible thermal image for baseline reporting or insurance compliance purposes, and also for necessary repair considerations.

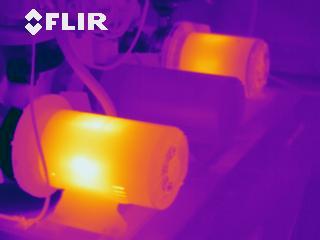

Figure 7. Pulleys and Motors	Figure 8. Pumps

You win again, benefiting from our Infrared Mechanical Survey by identifying overheated equipment. Using this survey reduces the risks, costs and liability associated with a catastrophic failure. Infrared provides you with a professional predictive maintenance program (PdM) that avoids unscheduled and costly repairs. Our Infrared Mechanical Survey helps your company in minimizing equipment service time losses which improves your equipment’s efficiency!
And, saves you money! A win…

“See what you can’t see – with an Infrared Mechanical Survey!”
