Commercial and Industrial Building Infrared Survey

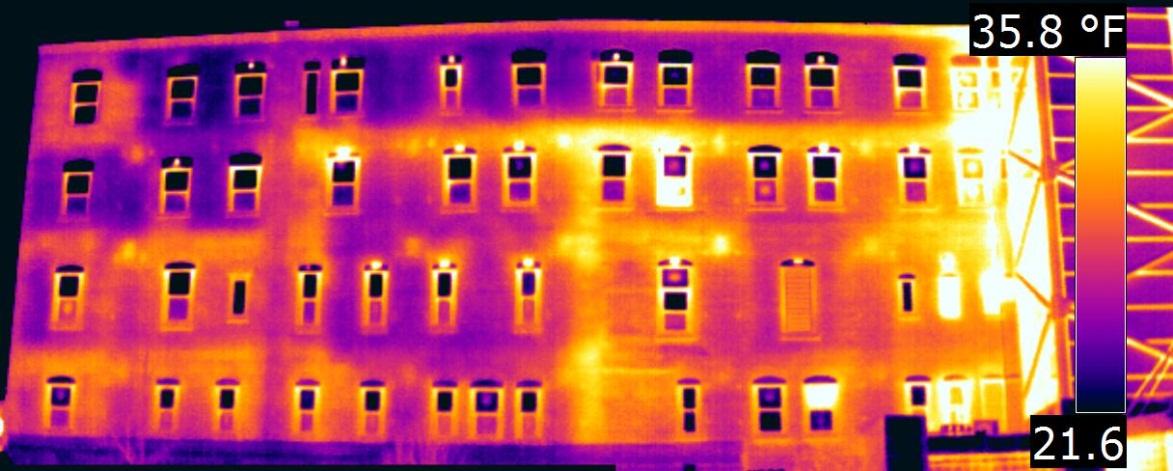

Brick Commercial Building Facade

The bulk of our business, aside from OGI work, are our commercial accounts providing building IR applications. From the roof to the foundation infrared provides you by far the best dollar value for the visual inspection of your commercial or industrial property. We show you the problems, as well as the non-issues of a particular situation giving you a thermal perspective you can’t obtain through traditional inspection methods. And, you receive a report where you are shown, visually, the issues you may want to address.

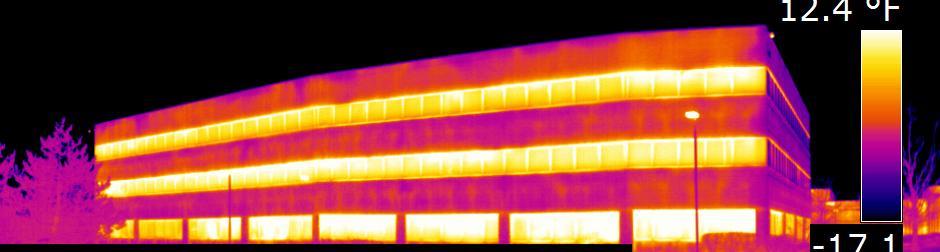

Office Building Facade

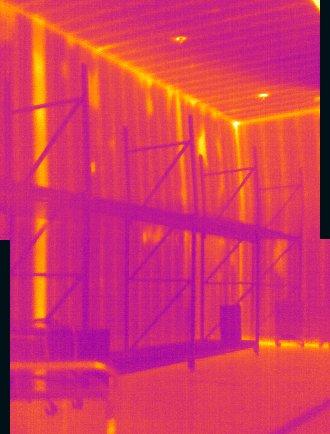

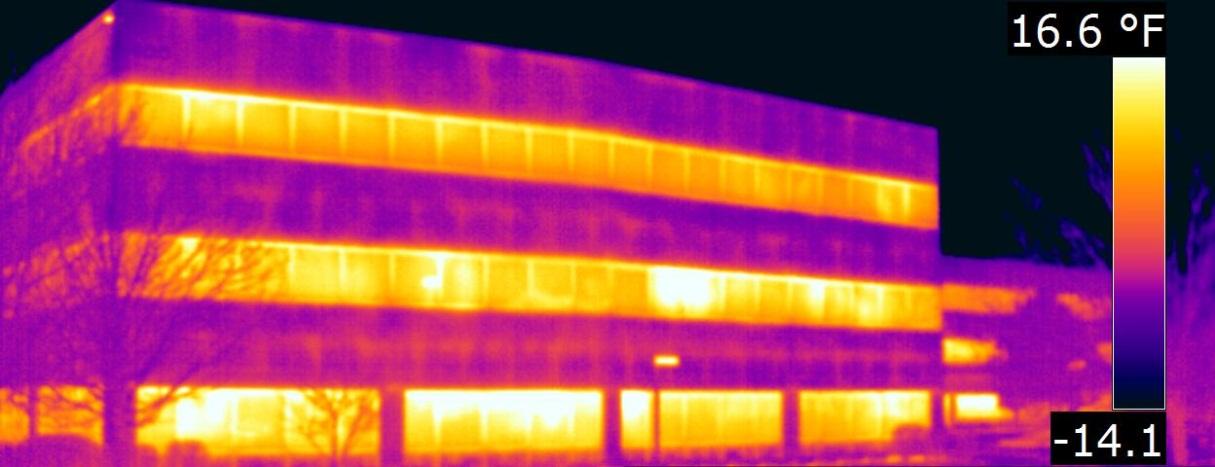

Infrared is the technology application you should strongly consider when having your property inspected or in utilizing a specific IR application for your building’s or facility situation. For building envelope surveys, water issues, HVAC system assessments, electrical surveys and more, commercial building owners and facility managers realize the importance IR inspections provide them. In cost savings and in knowing the exact location of problems for corrective actions, for planning and budgeting projects, as well as the visual proof provided in a documented report. These considerations are huge for today’s building professionals when obtaining their infrared surveys. Other inspection methods fall short of this thoroughness. Our reporting provides you with IR images, digital pictures if necessary, and an interpretive analysis of your IR images to tell you what exactly the IR camera see’s - thermally. We also have the capability to combine multiple IR images, horizontally or vertically, put together to give you one big picture and a better perspective of your thermal situation. The image below is a combination of three separate images ‘stitched together.

Three Image Office Building Facade View

Structural Examples

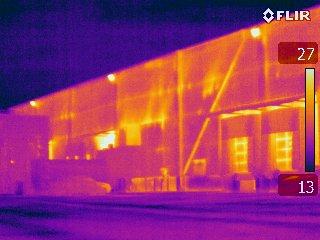

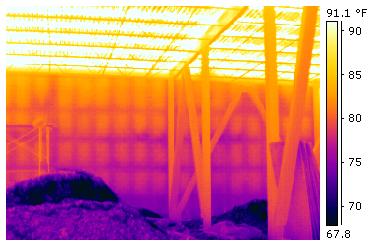

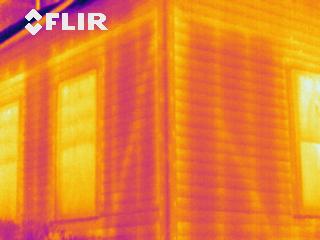

Figure 1	Figure 2

Electrical - Mechanical Examples

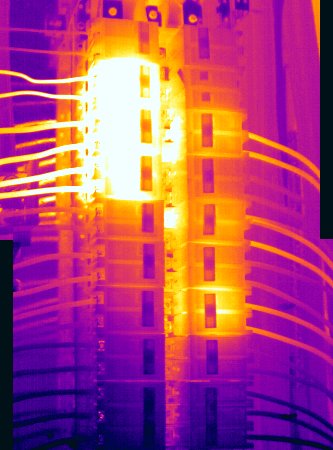

Figure 3. Fuses	Figure 4. Panel

Water Intrusion Examples
Visit our Water Detection page for further details.

Figure 5. Public Building	Figure 6. Hotel Ceiling

Heat Loss Examples
We provide you a qualitative or quantitative analysis depending on the application situation.

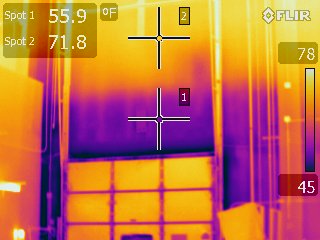

Figure 7. Heat Loss (in yellow)	Figure 8. Cold Air Infiltration (at Loading Bay Door)

Energy Efficiency and Commercial Buildings
The United States accounts for approximately 70 billion square feet of commercial building space and there is an immediate need to make our nation’s buildings more energy efficient. There a number of ways to reduce energy costs associated with your commercial building. The most cost effective method is to first have an Infrared survey done on your building. Infrared is quick, thorough and provides you visual documentation of your building’s deficiencies.

Radiant Heat Examples

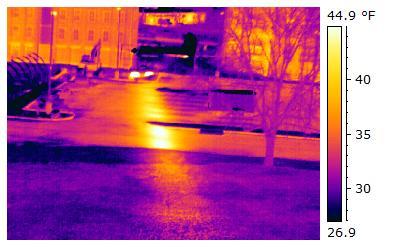

Figure 9. Ramp to Parking Garage	Figure 10. Restaurant Building Flooring

Roofing & Façade Examples
Visit our Infrared Roofing Surveys page for further details on roofing applications.

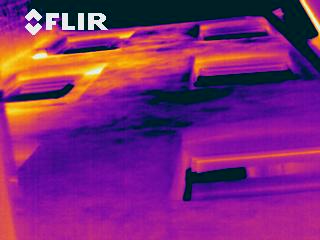

Figure 11. Insulation Issue (water)	Figure 12. Stucco Issue (water)

Underground Steam System Examples
Infrared is the perfect survey application for steam systems.

Figure 13.	Figure 14.

Refrigeration Construction Examples
The Figure 15 Image shows cold in blue coming through this market’s freezer wall. While Figure 16 shows heat infiltration to a larger freezer storage unit in yellow.

Figure 15.	Figure 16.

If you have a commercial building or facility problem you are not sure of how to correct, you probably need more information to make an informed decision. Consider infrared as the visual survey tool you need to help you obtain the information necessary to make those informed decisions.

Contact Us for a free quote and to discuss your commercial building or facility’s thermal application.

“See what you can’t see – with a Commercial Building Infrared Survey!”

Heat Loss, Water – Moisture & Leak Detection, Home Electrical & Mechanical Systems, Structural Issues, Radiant Heating, Building Envelope Improvements

See where your energy costs are going! Is it through the roof, or out the walls?

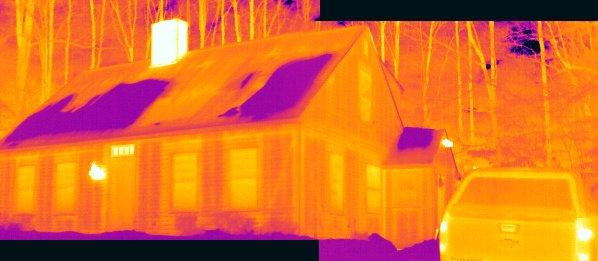

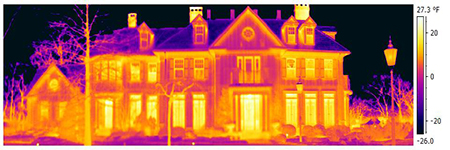

We offer an exterior view Home Heat Loss Survey in which we’ll scan your home from the outside surveying the exterior walls with infrared, see the three images below. We will give you a whole-house view and also break the house enclosure into smaller sections making it easier to any view problem areas, should they occur, to better show you heat loss specific locations. All of these exterior IR images will be put in a report for you to view. You can also use this report to obtain quotes from insulation contractors as well.

We recognize customers have different needs regarding services and pricing, so we offer an upgrade, if you choose, for your Home Heat Loss Infrared Survey that includes an interior IR scan.

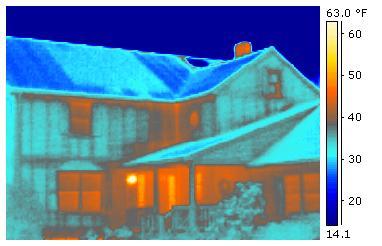

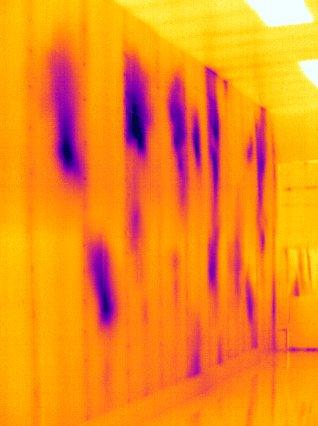

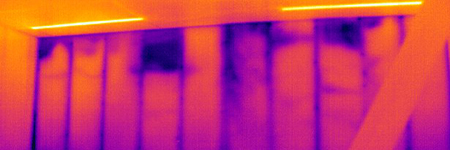

‘Upgrade’ your Home Heat Loss Survey to include an inside IR scan of your home’s exterior enclosure walls, in addition to having the exterior walls scanned from the outside. We’ll add the interior wall enclosure scan to your infrared report and show you your home’s cold air infiltration areas occurring, on the inside, while also showing you the heat loss locations occurring on the outside. This survey ‘upgrade’ gives you a whole-house picture of your home’s insulation issues. We visually map where you can make improvements to your home’s building envelope. See the interior views of the exterior wall enclosure images below. The blue areas indicate missing insulation showing cold spots and drafts.

The above, top, infrared image was produced from using two IR images ‘stitched’ together with FLIR® Tools+ Software to show a larger area view of an interior wall section.

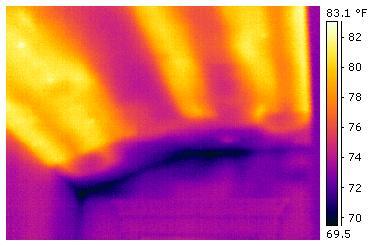

Use our Residential Heat Loss IR Survey to locate and document missing, damaged or improperly installed insulation. We can visually show your insulation contractor where you need corrections made. Take the guess work of where insulation is needed out of the equation. Infrared will locate exactly where your insulation problems are occurring. You will save money on materials and time spent in completing your home insulation project. All while reducing your home’s energy bill to keep money in your pocket and improving your home’s energy efficiency as well as your home’s personal comfort.

Energy Efficiency and Insulation
It is estimated that over 80 million U.S. homes are under-insulated and that there is an immediate need to make our nations homes more energy efficient. One of the most effective ways to reduce your homes energy usage is to make sure your home is properly insulated. A properly insulated home can help save you up to 20 percent on heating and cooling energy costs per year. If your home is over 15 years old it probably needs more insulation.

Infrared is the high-technology tool that ‘visually’ shows you whether your home is properly or badly insulated. It’s cost effective, quick, non-invasive and provides you with documented ‘visual proof’ of your home’s existing insulation condition. Call us for a free quote on an Infrared Survey of your home’s Insulation Efficiency. It’s money in your pocket!
Contact Us for a free Heat Loss quote.

Residential Moisture Detection
Water – moisture and leak detection can also be detected with IR and added to your residential survey. Water issues can occur anywhere in the home and Infrared is the perfect technology tool to use to locate and document moisture. We verify water issues with moisture meter readings that we also record on your report. See our Moisture Detection page for additional information.

Electrical & Mechanical
Electrical Panels and HVAC Systems are two components found in the home that you should have scanned with infrared. IR can alert you to possible fire hazards as well as failures noticed in the units during the survey. Visit our IR Electrical Survey and Reporting page for more information.

Structural Issues

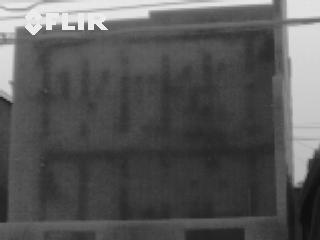

Structural features and possible problems associated with them can be seen with infrared. Grout patterns in block wall construction, improper framing, defects in façade’s (stucco, brick) are examples of some structural situation that may be encountered with IR.

Block Wall	Framing	Stucco Issues (Yellow)

Radiant Heating
Technology and comfort has caught up to the residential housing market with radiant heat systems becoming popular home features. From flooring, wall and ceiling radiant systems inside the home to walkway and driveway systems found outside. Whether electric or fluid systems are used Infrared is perfect for diagnosing radiant problems because IR is all about heat!

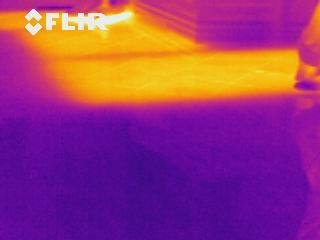

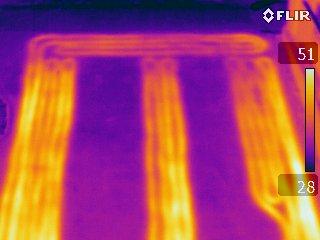

Driveway Radiant Heat	Flooring Radiant Heat	Bathroom Ceiling Radiant Heat

We can also vary your Residential IR Survey with customized imagery to enhance and structure your survey to specific needs. Two examples would be found below with a palette variation image found on the left which you may want for an advertising or promotional campaign. The IR image below right is a ‘stitched’ view using two images to give a larger more comprehensive analysis of a home. These images can be left as is to show it’s been stitched or cropped to provide a more finished look.

Palette Variation	Stitched View

“See what you can’t see – with a Residential Infrared Survey!”

Leak detection services can also be added to this infrared service to give the homeowner a more thorough Infrared Survey of their home’s existing condition.

Sawyer Infrared follows ASTM Designation: C 1060 ‘Standard Practice for Thermographic Inspection of Insulation Installations in Envelope Cavities of Frame Buildings’ www.astm.org
